Applications: Explosion test benches, Extreme miniature devices, Robotics and actuators, Breaking system pressure, Laboratory and research

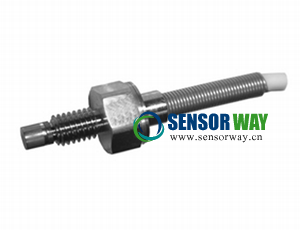

　　Description: The XPM6 is a miniature transducer designed to measure static and dynamic pressure under a wide variety of conditions, including hostile environments. It is made of stainless steel and is available in ranges from 0-100 to 0-1000 bar [1500 to 15 000 psi]. Option “MH” provides extra protection against temperature flashes up to 1000 ° C [1832 ° F]. The XPM6 incorporates Measurement Specialties’ cutting edge SanShiftTM technology, which virtually eliminates zero shifts caused by installation torque. The XPM6’s sensing element is a fully temperature compensated Wheatstone bridge made with high stability micro-machined silicon strain gauges. With many years of experience as a designer and manufacturer of sensors, Measurement Specialties, Inc. has the expertise to customize and/or design sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. Our conditioning electronics can power the sensor, amplify the electronic signal, and display the data digitally. A turnkey measurement system arrives with matched components, formatted, calibrated and ready for your immediate use.

　　Features:

　　M6 thread
　　Flush diaphragm
　　For static and dynamic applications
　　High level tension output available
　　Low installation torque sensitivity

　　典型应用: 爆炸测试，超小型设备，机械人，刹车系统，实验室和研究

　　产品描述: XPM6小型压力变送器用于包括恶劣环境等多种工况下的动态和静态压力测量。传感器采用不锈钢结构，标准量程从0~100到0~1000bar（1500~15000psi），“MH”型可提供高达1000℃的瞬间温度保护。XPM6结合了MEAS最新的SanShift技术，几乎可以消除由于安装扭矩带来的零点漂移。传感器的核心感应元件是一组金属应变片组成的惠斯通电桥，经过温度补偿。作为拥有多年经验的传感器设计和制造商，MEAS常常与客户合作，按要求定制适合特殊用途和测试环境的传感器。同时，我们也根据客户需要提供成套系统。配套元件（传感器，电源，放大器和数显系统）配置统一，经过校正，可供客户立即使用。

　　特点:
　　
　　齐平膜
　　低安装扭矩灵敏度
　　M6螺纹
　　可选放大输出
　　静态和动态测量

　　XPM6小型压力变送器更多技术参数及规格书下载请浏览：http://www.sensorway.cn/sensors/567.html
　　
