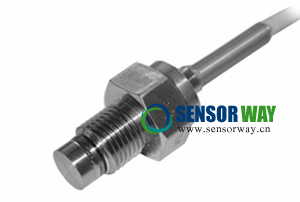

XPM10小型压力变送器中英文产品介绍
来源:赛斯维传感器网 发表于 2014/6/10




  Applications: Hydraulic regulation process, Explosion test benches, Onboard equipment monitoring, Breaking system pressure, Laboratory and research

  Description: The XPM10 is a miniature transducer designed to measure static and dynamic pressure under a wide variety of conditions, including hostile environments. It is made of stainless steel or titanium and is available in standard ranges from 0-1 to 350 bars [15 up to 5000 psi]. The XPM10 incorporates Measurement Specialties’ cutting edge SanShiftTM technology, which virtually eliminates zero shifts caused by installation torque. The XPM10’s sensing element is a fully temperature compensated Wheatstone bridge made with high stability micro-machined silicon strain gauges which optimize performance, especially at low ranges and frequencies. An on-board A1 or A2 amplifier for high level output is optionally available for all ranges, and an electrical connector interface is available for the standard low level output version. With many years of experience as a designer and manufacturer of sensors, Measurement Specialties, Inc. has the expertise to customize and/or design sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. Our conditioning electronics can power the sensor, amplify the electronic signal, and display the data digitally. A turnkey measurement system arrives with matched components, formatted, calibrated and ready for your immediate use.

  Features:

  Flush diaphragm
  Low installation torque sensitivity
  M10x1 thread
  High level tension output available
  For static and dynamic applications

  典型应用: 液压,爆炸测试,车载设备监控,刹车系统,实验室和研究

  产品描述: XPM10小型压力变送器用于包括恶劣环境等多种工况下的动态和静态压力测量。传感器采用不锈钢或钛金属结构,标准量程从0~1到0~350bar(15~5000psi),可选放大输出。XPM10结合了MEAS最新的SanShift技术,几乎可以消除由于安装扭矩带来的零点漂移。传感器的核心感应元件是一组金属应变片组成的惠斯通电桥,经过温度补偿,性能良好,尤其在小量程和低频率时。毫伏输出型号可选电气连接头。作为拥有多年经验的传感器设计和制造商,MEAS常常与客户合作,按要求定制适合特殊用途和测试环境的传感器。同时,我们也根据客户需要提供成套系统。配套元件(传感器,电源,放大器和数显系统)配置统一,经过校正,可供客户立即使用。

  特点:

  齐平膜
  低安装扭矩灵敏度
  M10×1螺纹
  放大输出
  静态和动态测量应用

  XPM10小型压力变送器更多技术参数及规格书下载请浏览:http://www.sensorway.cn/sensors/571.html

  北京赛斯维测控技术有限公司产品咨询热线:010-84775646,84775648。
